- Šifra
- 81616
- Brand
- MSI
Artikal nije dostupan za kupovinu na sajtu
Pozovite nas da se raspitate o dostupnosti proizvoda.

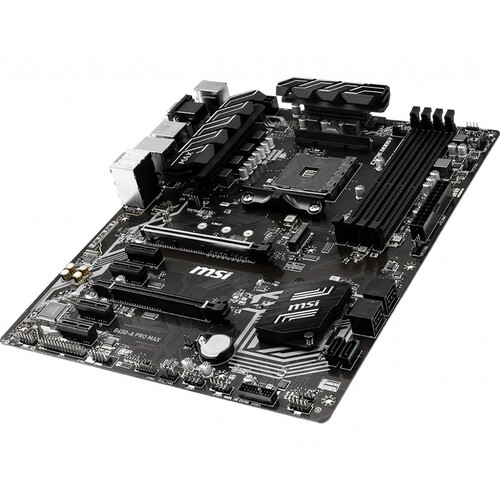

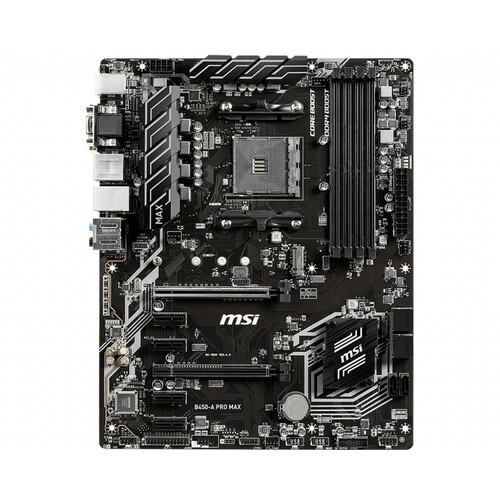

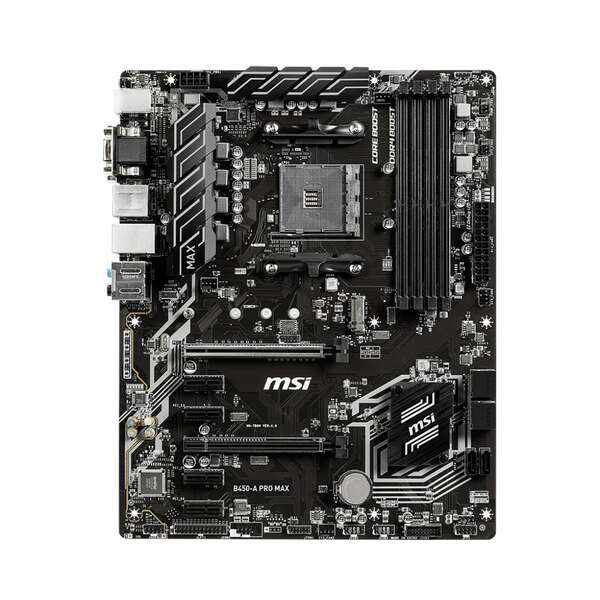

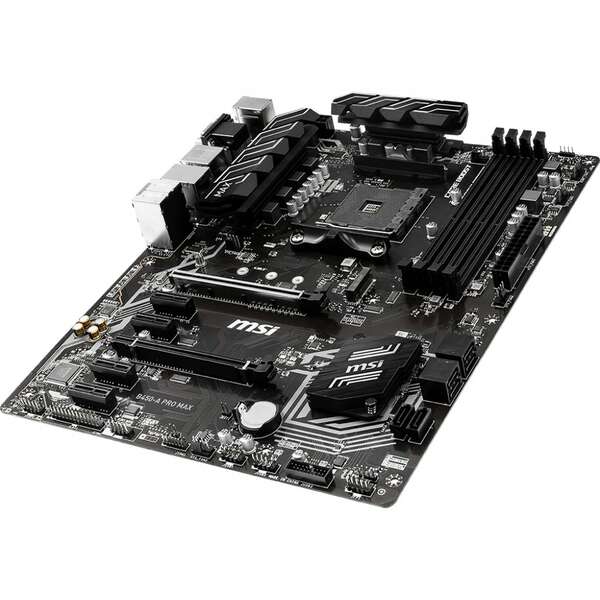

| MSI matična ploča B450-A PRO MAX VGA/HDMI/DVI/M.2 | |
| Podnožje | AMD® AM4 |
| Čipset | AMD® B450 |
| Tip procesora | AMD |
| Format ploče | ATX |
| Podržani procesori | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Podržana memorija | DDR4 |
| Memorija | |
| 4 x DDR4 memory slots, support up to 64GB | |
| Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) | |
| For AMD Ryzen Gen3 (R5/R7/R9) | |
| Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) | |
| For AMD Other CPU | |
| Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Multi-GPU podrška | Supports 2-Way AMD® CrossFire™ Technology |
| Integrisana grafička karta | |
| 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz1 | |
| 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1 | |
| 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1 | |
| Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics processors | |
| Maximum shared memory of 2048 MB | |
| Slotovi za proširenje | - 1 x PCIe 3.0 x16 slot (PCI_E1) - 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode - Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode - Athlon™ with Radeon™ Vega Graphics support x4 mode - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)* - 4 x PCIe 2.0 x1 slots* *PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot. |
| Skladište | AMD® CPU - 2 x SATA 6Gb/s ports* - 1 x M.2 slot (Key M)* - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD® B450 Chipset - 4 x SATA 6Gb/s ports *SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot. |
| Mrežna karta | 1 x Realtek® 8111H Gigabit LAN controller |
| Zvučna karta | Realtek® ALC892 Codec - 7.1-Channel High Definition Audio |
| USB | |
| AMD® B450 Chipset: - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) | |
| AMD® CPU: - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel | |

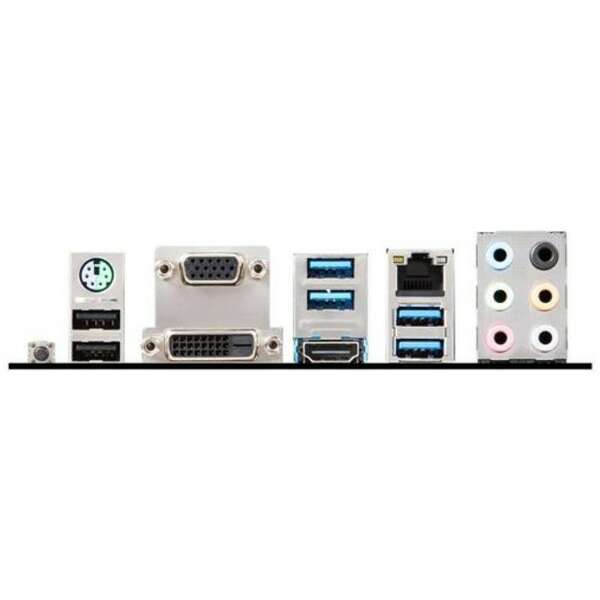

| Konektori na zadnjoj strani | |
| Flash BIOS Button | |
| PS/2 Combo Port | |
| VGA Port | |
| USB 3.2 Gen1 | |
| LAN Port | |
| HD Audio Connectors | |
| USB 2.0 ports | |
| DVI-D Port | |
| HDMI Port | |
| USB 3.2 Gen2 | |
| Interni konektori | |
| 1 x 24-pin ATX main power connector | |
| 1 x 8-pin ATX 12V power connector | |
| 6 x SATA 6Gb/s connectors | |
| 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) | |
| 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) | |
| 1 x 4-pin CPU fan connector | |
| 1 x 4-pin water-pump-fan connector | |
| 4 x 4-pin system fan connectors | |
| 1 x TPM module connector | |
| 1 x Front panel audio connector | |
| 2 x System panel connectors | |
| 1 x Serial port connector | |
| 1 x Parallel port connector | |
| 1 x Chassis Intrusion connector | |
| 1 x Clear CMOS jumper | |
| 1 x 5050 RGB LED strip 12V connector | |
- Model:
- MSI B450-A PRO MAX VGA/HDMI/DVI/M.2
- Naziv i vrsta robe:
- MATICNA PLOCA
- Uvoznik:
- EWE comp d.o.o.
- Zemlja porekla:
- Kina
- Prava potrošača:
- Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
