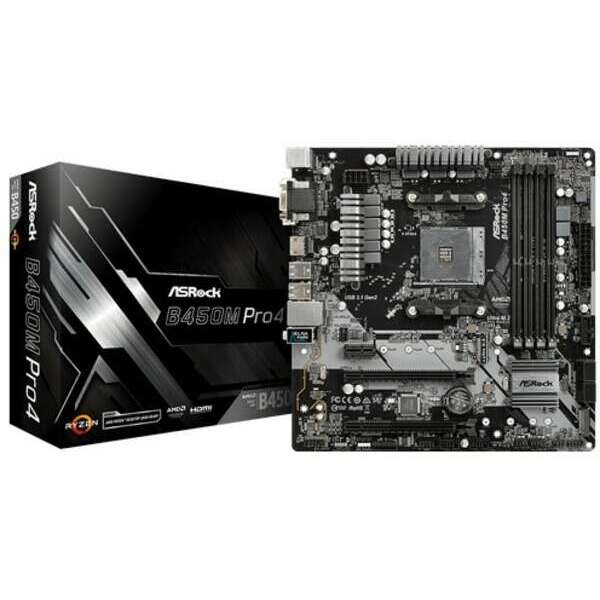

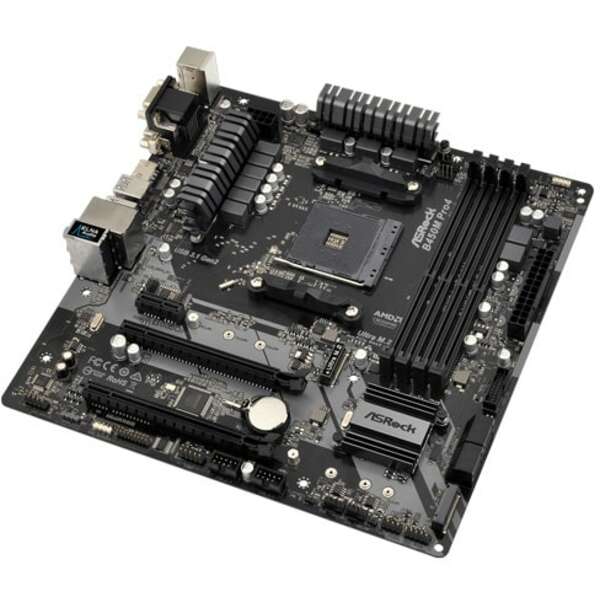

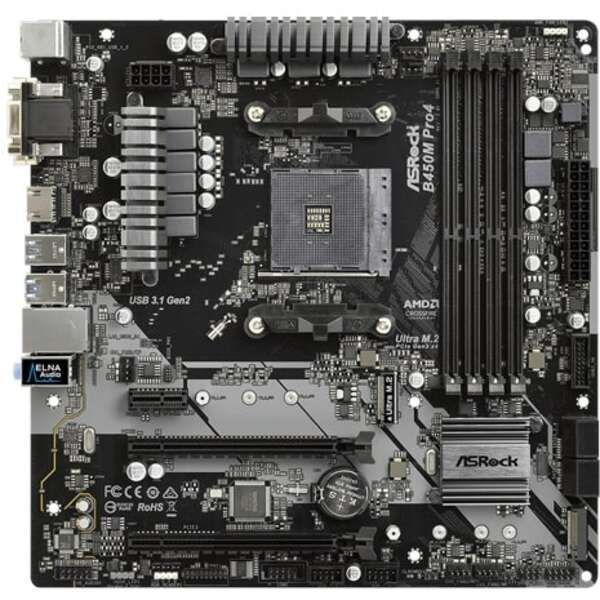

ASROCK B450M PRO4

Dodaj u listu želja

Šifra: 81563
Brand: ASROCK

Artikal nije dostupan za kupovinu na sajtu

Pozovite nas da se raspitate o dostupnosti proizvoda.

Opis proizvoda

ASROCK matična ploča B450M PRO4
Podnožje	AMD® AM4
Čipset	AMD® B450
Tip procesora	AMD
Format ploče	Micro ATX
Podržani procesori	AMD AM4 Socket - Digi Power design
Podržana memorija	DDR4
Memorija
dvo-kanalna DDR4 memorijska tehnologija
4 x DDR4 DIMM ležišta
AMD Ryzen serija procesora (Pinnacle Ridge) podržava DDR4 3200+(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen serija procesora (Summit Ridge) podržava DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen serija procesora (Raven Ridge) podržava DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*
Maksimalan kapacitet sistemske memorije: 64GB** - 15μ zlatni kontakti u DIMM slotu
*For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. Please refer to below table for DDR4 UDIMM maximum frequency support.
Multi-GPU podrška	Podržava AMD Quad CrossFireX™ i CrossFireX™
Integrisana grafička karta	Integrisana AMD Radeon™ Vega Serije grafika u Ryzen Seriji APU*
DirectX 12
Pixel Shader 5.0
Deljena memorija 2GB
Maksimalna deljena memorija do 16GB (potrebno je 32GB sistemske memorije)
Tri izlaza	D-Sub, DVI-D i HDMI
Podržava do tri monitora
Podržava HDMI sa maksimalnom rezolucijom 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Podržava DVI-D sa maksimalnom rezolucijom 1920x1200 @ 60Hz
Podržava D-Sub sa maksimalnom rezolucijom 1920x1200 @ 60Hz
Podržava Auto Lip Sync, Deep Color (12bpc), xvYCC i HBR (High Bit Rate Audio) preko HDMI porta (potreban HDMI monitor)
Podržava HDCP 1.4 preko DVI-D i HDMI porta
Podržava 4K Ultra HD (UHD) reprodukciju preko HDMI 1.4 porta
Slotovi za proširenje	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)
1 x PCI Express 2.0 x1 Slot *Podržava NVMe SSD kao boot disk
Skladište	4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)**
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module M2_2 and SATA3_3 share lanes. If either one of them is in use, the other one will be disabled. *
Podržava NVMe SSD kao boot disk Podržava ASRock U.2 Kit
Mrežna karta	PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Podržava Wake-On-LAN
Podržava Lightning/ESD Protection
Podržava Energy Efficient Ethernet 802.3az
Podržava PXE
Zvučna karta	7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Podržava zaštitu od prenapona
ELNA Audio Caps

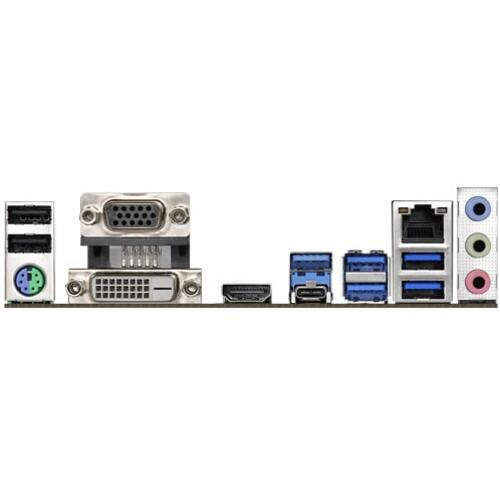

Konektori na zadnjoj strani
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Interni konektori
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x AMD Fan LED Header***
1 x CPU Fan Connector (4-pin)****
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support
Podržava "Plug and Play"
ACPI 5.1 compliance wake up events
Podržava jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment
Ostalo	ASRock USB 3.1 Gen2
ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy
Premium 42A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
